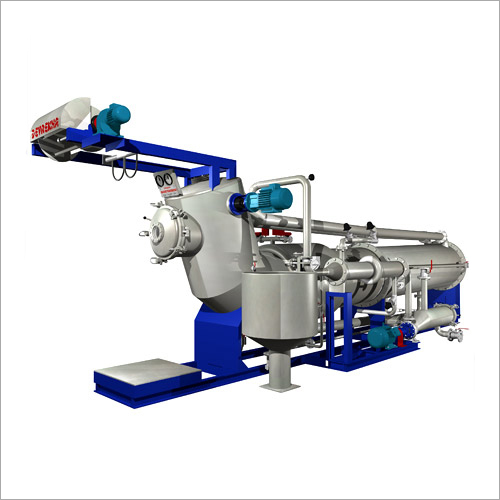

Soft Flow Dyeing Machine
उत्पाद विवरण:
X
उत्पाद विवरण
we are a globally acclaimed manufacturer, exporter and supplier of Economical Top Tube Soft Flow Dyeing Machine. Our company possesses a team of skilled and competitive engineers, who use cutting edge methods as well as superior quality components to fabricate this device as per set industrial norms. This machine is widely praised for numerous characteristics like low running cost, less maintenance, reduced power consumption and high efficiency. Further, this Economical Top Tube Soft Flow Dyeing Machine is provided after a thorough quality inspection at our state of the art testing facility.
Features :
- Lowest liquid ratio compare to other long tube machine
- Reduce power consumption
- Reduce maintenance
- Lowest running cost
Technical Features :
- Capacity : 100 to 350Kg
- Single Vessel 2 Chambers to Reduce loop length
- Dye - 30 To 450 Grms./Mtr. Sq. Fabrics (Woven & Knitted Fabrics)
- Specially design Soft Nozzles for Smooth and entangle free operation
- Fabric drive reel with frequency controller
- Liquid ratio: 1:8 (Wet fabric)
- High Temp. - Up to 140°C
- Vessel made from - SS 316 L
Optional Features :
- Fully automatic with PLC
- Seam detector
- Magnetic level indicator / controller
- Double tube for higher capacity
- Main pump Inverter
- Flow meter (Water liter counter)
| CAP. KG./Batch | CAP. KG./Cham. | Vessel DIA | Length (mm) | Width (mm) | Height (mm) |
| 100 to 125 | 50 to 65 | 34" | 6500 | 2000 | 2700 |
| 200 to 250 | 100 to 125 | 34" | 8000 | 2000 | 2700 |
| 300 to 350 | 150 to 175 | 34" | 10650 | 2000 | 2700 |
